- 24-Port Layer 3 Managed PoE Switch with advanced UniFi management.
- 8 × 2.5GbE PoE++ ports, 8 × Gigabit PoE++ ports, and 8 × Gigabit PoE+ ports.
- 2 × 10G SFP+ uplink ports for high-speed fiber connectivity.
- 400W total PoE budget supporting PoE+, PoE++, access points, cameras, and VoIP devices.
- Etherlighting™ technology provides visual port identification and VLAN indication.
- Layer 3 switching with static routing and advanced network management.
- Integrated with UniFi Network Controller for centralized cloud management.
- Rack-mountable 1U enterprise-grade switch for business and campus networks.
Secured and trusted checkout with
- Omschrijving
-
Details

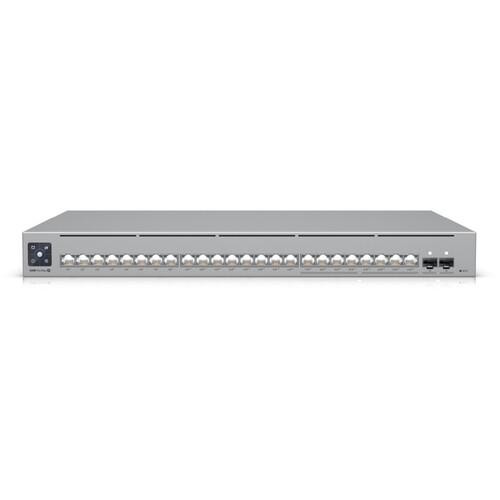

- The Ubiquiti UniFi Pro Max 24 PoE (USW-PRO-MAX-24-POE) is a high-performance Layer 3 managed switch designed for enterprise networks, business environments, campus deployments, surveillance systems, and high-density wireless infrastructures.
- The switch features a total of 24 Ethernet ports, including 8 × 2.5GbE PoE++ ports, 8 × Gigabit PoE++ ports, and 8 × Gigabit PoE+ ports, providing flexible connectivity options for modern networking requirements.
- With support for PoE+, PoE++, and a total PoE power budget of 400W, the switch can efficiently power Wi-Fi 6/7 access points, IP cameras, VoIP phones, access control systems, and other power-hungry network devices. :contentReference[oaicite:0]{index=0}
- Two dedicated 10G SFP+ uplink ports provide high-speed fiber connectivity for backbone links, aggregation switches, servers, and storage systems. :contentReference[oaicite:1]{index=1}
- Advanced Layer 3 capabilities include static routing, VLAN support, access control policies, and traffic management features to optimize network performance and segmentation. :contentReference[oaicite:2]{index=2}
- Exclusive Etherlighting™ technology illuminates ports to display port location, connection speed, and VLAN assignments, simplifying cable management and troubleshooting. :contentReference[oaicite:3]{index=3}
- The switch delivers a switching capacity of 112 Gbps, non-blocking throughput of 56 Gbps, and forwarding performance of up to 83 Mpps, ensuring smooth operation in demanding enterprise environments. :contentReference[oaicite:4]{index=4}
- Support for up to 1,000 VLANs, 16,000 MAC addresses, IPv4 static routes, and advanced security policies makes it suitable for complex network infrastructures. :contentReference[oaicite:5]{index=5}
- The integrated UniFi Network platform provides centralized monitoring, configuration, analytics, and remote management through a single intuitive interface. :contentReference[oaicite:6]{index=6}
- A built-in touchscreen display provides real-time system status and network information for quick monitoring and diagnostics. :contentReference[oaicite:7]{index=7}

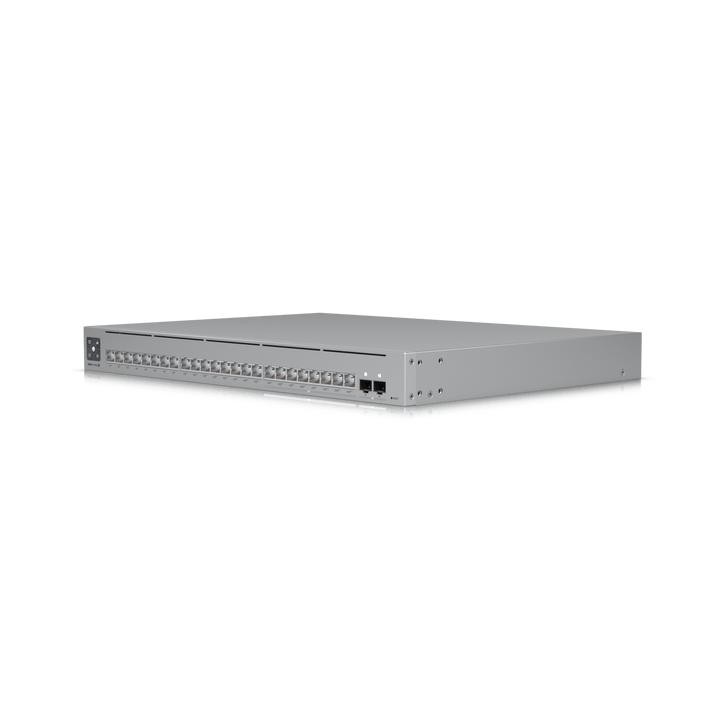

- The rack-mountable 1U steel chassis is designed for professional deployments and supports DC backup power for improved network resilience. :contentReference[oaicite:8]{index=8}
- The UniFi Pro Max 24 PoE is an ideal solution for organizations requiring multi-gigabit connectivity, high-power PoE delivery, advanced Layer 3 functionality, and centralized network management.
