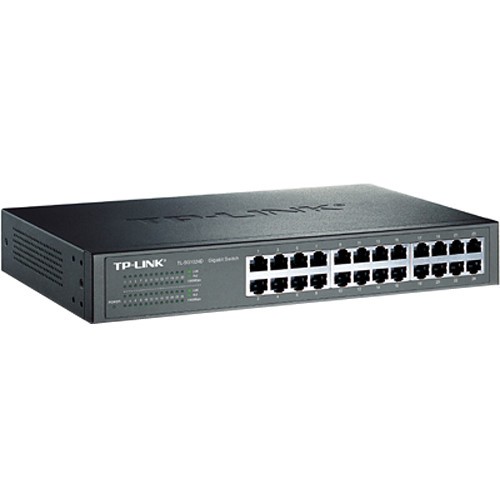

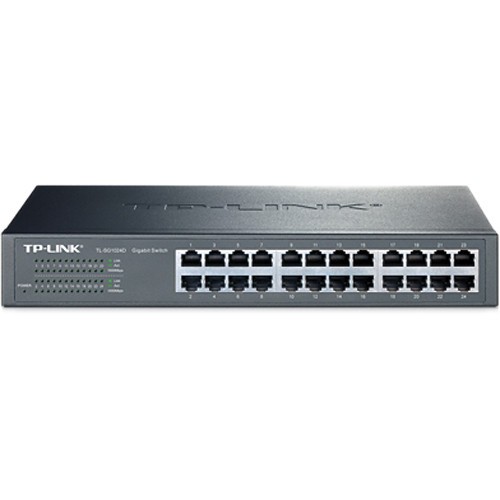

TP-Link TL-SG1024D 24 Port Unmanaged Gigabit Rackmount Switch
Sku
TL-SG1024D

Beschikbaarheid: In voorraad

US$ 140,00
OF

  • 802.3i/802.3u/802.3ab/802.3x Standards

  • 24 x Gigabit Ethernet Ports

  • Fanless Design

  • 48 Gbps Switching Capacity

  • 35.7 Mpps Forwarding Rate

  • 8K MAC Address Table

  • 10KB Jumbo Frame

  • Store-and-Forward Transfer Method




The TP-Link TL-SG1024D 24-Port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless, and standard upgrade to boost network performance to 1000 Mb/s. All 24 ports support auto MDI/MDIX, so you just plug and play without having to worry about the cable type. Its energy-efficient technology allows the TL-SG1024D to use up to 40% less power, and 80% of its packaging material can be recycled, making it an eco-friendly solution for your business network.


This Gigabit Switch features energy-efficient TP-LINK Green Technology that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials.


All 24 ports are Gigabit RJ-45 ports, which can provide large file transferring and also be compatible with 10 and 100 Mb/s Ethernet devices. Featuring non-blocking switching architecture, the TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With a 10kB Jumbo frame, the performance of large file transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode alleviate the traffic congestion and make the TL-SG1024D work reliably. It’s a good choice to update your network to Gigabit while protecting your previous investment properly.


The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mb/s) and intelligently adjusts for compatibility and optimal performance.








Green Technology





  • Saves 40% power

  • Recyclable packaging material







High Performance





  • IEEE 802.3x flow control

  • Non-blocking switching architecture

  • 48 Gb/s switching capacity; store and forward

  • Auto-MDI/MDIX

  • Auto-negotiation

  • MAC address auto-learning and auto-aging

  • 10kB jumbo frame







Easy to Use





  • Plug and Play design

  • Quiet/fanless operation

  • Flow Control

  • Fanless design






Secured and trusted checkout with

Omschrijving

Details

Key Specs
Inputs/Outputs
24x RJ45 Gigabit Ethernet
Stackable
No
Switching Bandwidth
48 Gb/s
Stackable
No
Protocols
Supported Protocols
Auto-MDIX/MDI
Jumbo Frames Support
10,000 Bytes
MAC Address Table Size
8K
Performance
Forwarding Rate
35.7 Mpps
Switching Bandwidth
48 Gb/s
Electrical
Power Draw
14.6 W (Active)
Input Power
100 to 240 VAC, 50 / 60 Hz
General
Certifications
No
Operating Conditions
32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions
-40 to 158°F / -40 to 70°C at 5 to 90% Humidity
Cooling System
Passive
Rack Mountable
No
Dimensions
11.6 x 7.1 x 1.7" / 29.5 x 18 x 4.3 cm
Packaging Info
Package Weight
4.445 lb
Box Dimensions (LxWxH)
15.8 x 9.8 x 3.1"
