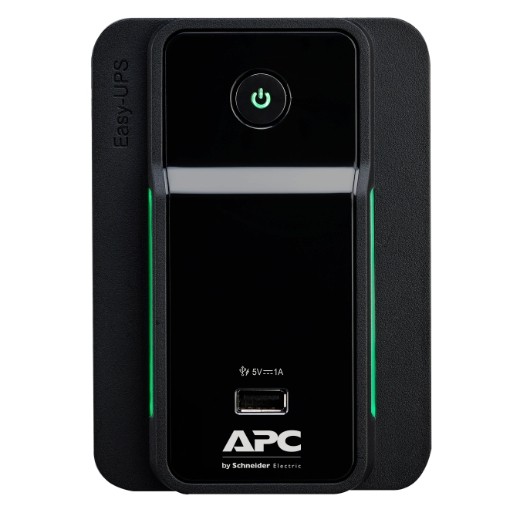

APC BVX700LU-LM Battery Back UPS 700VA 120V

Thuis /
Power Devices /
APC BVX700LU-LM Battery Back UPS 700VA 120V

Sku

BVX700LU-LM

Beschikbaarheid: In voorraad

US$ 87,00

Hoeveelheid:

BACK-UPS FEATURES & BENEFITS

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Surge only outlets

Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Battery and surge protected outlets

Back up and protect your hardware and data during power outages, surges, and spikes.

Battery-protected and surge-only outlets

Reserves power capacity and run time for connected equipment that requires UPS battery back-up while providing surge only protection for less critical equipment

Audible alarms

Provides notification of changing utility power and UPS power conditions

LED status display

Quickly understand unit and power status with visual indicators.

Secured and trusted checkout with

Omschrijving

Details

TECHNICAL SPECIFICATIONS

Max Configurable Power (Watts)

360 Watts / 700VA

Efficiency at Full Load

97.0 %

Output Frequency (sync to mains)

50/60 Hz +/- 1 Hz Sync to mains

Topology

Line interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

6 ms typical: 10 ms maximum

Input frequency

50/60 Hz +/- 5 Hz Auto-sensing

Input voltage range for main operations

89 - 145 (120 V) ACV

Number of Power Cords

Efficiency at Full Load

97.0 %

Type of Input Protection Required

Circuit breaker

Input Power Factor at Full Load

0.51

Battery type

Lead-acid battery

Typical recharge time

8hour(s)

Nominal Battery Voltage

12 V

Expected Battery Life (years)

2 - 3

Control panel

LED Status display with online: on battery

Audible Alarm

Alarm when on battery: distinctive low battery alarm

Surge energy rating

350Joules

Maximum Height

138MM, 13.8CM

Maximum Width

98MM, 9.8CM

Maximum Depth

310MM, 31.0CM

Net Weight

4.2KG

Shipping weight

4.6KG

Shipping Height

222MM, 22.2CM

Shipping Width

142MM, 14.2CM

Shipping Depth

346MM, 34.6CM

# of Layers per Pallet

8.0

# of Units per Layer per Pallet

20.0

SCC Codes

10731304417658

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 (Non-condensing) %

Operating Elevation

0 - 3000meters

Storage Temperature

-15 - 40 °C

Storage Relative Humidity

0 - 95 (Non-condensing) %

Storage Elevation

0 - 3000meters

Audible noise at 1 meter from the surface of the unit

40.0dBA

Protection Class

IP20

Approvals

NOM, UL 1778 5th edition

RoHS

Compliant

Output power capacity: 360 Watts / 700VA

Output Connections: (4) NEMA 5-15R (Battery Backup)

Input Connections: NEMA 5-15P

Cord Length: 1.5meters
