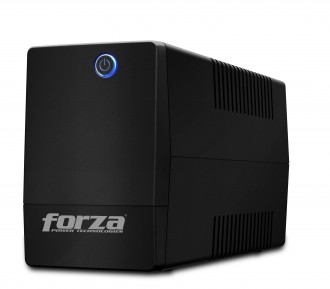

UPS

Four full battery backup outlets

7 min backup time

500VA/250W

NEMA 5-15 outlets

Capacity: 500VA/250W

Input

• Nominal voltage: 115V
• Voltage range: 75-144VAC
• Frequency: 50/60Hz (autosensing)
• AC plug style: NEMA 5-15P

Output

• Nominal voltage: 115V
• Frequency: 50/60Hz
• Frequency stability: 50/60Hz ± 1Hz
• Waveform: Modified Sine Wave
• Total outlets: 8 (NEMA 5-15R)
• Full battery / surge protection outlets/ AVR: 4
• Surge protection only outlets: 4

Battery

• Type and quantity: One 12V 4Ah cell
• Backup time: 7 minutes
• Recharge time: Recharges back to 90% of its capacity within 5 hours in line mode

Voltage regulation

• Buck: 120-128V
• High cutoff: 140-148V
• Boost 1: 98-106V
• Boost 2: 84-92V
• Low cutoff: 70-78V

Line/Battery Transfer

• Typical transfer time: <6ms

Alarms/Indicators

• Visual indicators: Normal AC input: blue LED light Battery back-up: red LED light
• Audible alarm: Battery mode: beeps twice every 8 seconds Low battery: beeps four times every second Overload and fault: beeps continuously

Protection

• Full protection: Line mode: 120% ± 10%, shuts down after 4 seconds and transfers to fault mode Battery mode: 100% ± 10%, audible warning, will shut down after one minute, and then transfer to fault mode

Physical appearance

• Dimensions: 8.2 x 5.1 x 3.8 in
• Color: Black
• Cord length: 3.2 ft
• Weight: 8.8 lb

Smart UPS
LCD 120V USB 1500VA

Forza FX Series offers an enhanced level of protection specially designed for your high performance office equipment like servers, sensitive electronics and home theater components.

It features a coaxial surge protection line and LCD display, in addition to a battery-supported system (UPS), allowing you ample time to save your important information and shut down all your equipment safely during power failures.

Interactive UPS with coaxial protection and USB charging ports
1000VA/500W

TThe Forza HT Series is a line interactive Uninterruptible Power Supply (UPS) designed to provide clean power to your office equipment, electronics and home theater components along with an enhanced level of protection.

It prevents performance degradation and data loss by keeping your valuable equipment powered during outages and other voltage fluctuations in the power line. By integrating a convenient LCD display, coaxial surge protection and battery backup capabilities in a single unit, the HT series emerges as the best in its class for its performance, quality and compact footprint. It comes in 750VA and 1000VA configurations.

Highlights

• UPS with line interactive topology
• Convenient LCD displays real time status information
• Network/phone protection
• Coaxial line protection
• Twelve (12) NEMA 5-15 outlets, two of which are widely spaced to accommodate bulky adapters
• Six (6) outlets with AVR and battery backup, plus six (6) surge-only outlets
• Two 2.1-amp USB charging protected ports on top panel
• Easily removable/replaceable battery
• Ideal for home and office applications

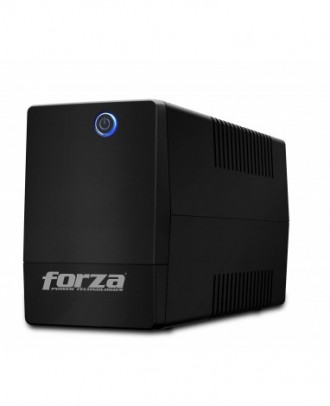

Interactive UPS with coaxial protection and USB charging ports
750VA/375W

The Forza HT series is a line interactive Uninterruptible Power Supply (UPS) designed to provide clean power to your office equipment, electronics and home theater components along with an enhanced level of protection.

It prevents performance degradation and data loss by keeping your valuable equipment powered during outages and other voltage fluctuations in the power line. By integrating a convenient LCD display, coaxial surge protection and battery backup capabilities in a single unit, the HT series emerges as the best in its class for its performance, quality and compact footprint. It comes in 750VA and 1000VA configurations.

Highlights

• UPS with line interactive topology
• Convenient LCD displays real time status information
• Network/phone protection
• Coaxial line protection
• Twelve (12) NEMA 5-15 outlets, two of which are widely spaced to accommodate bulky adapters
• Six (6) outlets with AVR and battery backup, plus six (6) surge-only outlets
• Two 2.1-amp USB charging protected ports on top panel
• Easily removable/replaceable battery
• Ideal for home and office applications

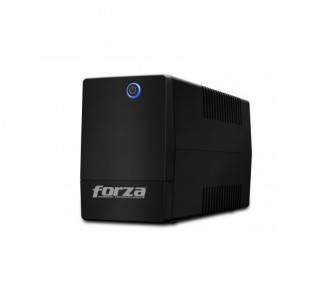

NT-1011 UPS 120v 1000VA/500W

Forza’s NT series is designed to provide electric protection for your personal computer and peripherals. With its compact size, the unit is ideal for small work spaces at the office or at home. Although small in size, it provides the maximum protection against the constant threat of electrical supply outages.

Emergency backup

Power supply

Power surge

Spike protection

Output

6 Connectors

AVR

Protection

Phone line

Protection

• Output: 1350 VA / 810W
• Input: 120 VAC @ 60 Hz ± 3 Hz
• 10 x Total NEMA5-15R Outlets
• 5 x Battery Backup & Surge Outlets

Solution type

• Gaming
• Home
• Corporate

Applications

• Gaming consoles
• Computers & accessories
• Televisions 19-80"
• Audio systems
• Video surveillance
• Small servers

Interactive topology
Interactive UPS offer a cost effective solution with low energy consumption ratings, extending the overall life cycle of batteries. Voltage regulation is accomplished without switching to battery mode.

Battery backup
Supplies battery-derived backup power during blackouts, preventing loss of critical information and minimizing equipment stress caused by a hard shutdown. Delivers reserved energy long enough for equipment to properly shut down.

Automatic voltage regulation (AVR)
Provides clean and stable AC power by automatically increasing low voltages during brownouts and decreasing overvoltages without tapping into the reserved battery power when irregularities are present on the main utility line.

Automatic shut-off
Guard your equipment against potentially damaging power fluctuations and other irregularities in the electrical supply by shutting down the power when voltage levels become too low or too high.

Surge protection, overload protection, electric discharge and voltage protection
Diverts excess voltage away from connected equipment during power surges or power spikes without reducing battery power used to run primary critical equipment. Extends battery life by preventing system overloads and controlling charging currents.

Resettable circuit breaker
Automatically prevents the flow of electricity in an electric circuit as a safety measure upon detecting undesirable high voltage levels. Can be reset to resume operation.

MOV Technology
Metal Oxide Varistor (MOV) technology helps absorb and it redirects transient energy preventing stray electricity from reaching protected equipment.

Thermofuse protection
Instantly disconnects the power when internal temperatures become dangerously high.

Power filters
Reduces electromagnetic interference (EMI) and radio frequency interference (RFI) to block unwanted noise, providing clean and distortion-free electricity to all power outlets.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Battery self-test
Ensures early failure notifications of bad or old batteries for immediate replacement, preventing any unexpected and unforeseen backup power issues.

Audible alarm
Provides audible notification of changing utility power and UPS power conditions for when the UPS is installed in hard to reach places or not easily seen by the user.

Flame retardant material
All of our products are constructed with fire retardant ABS material, guaranteeing that if any failures are present, the equipment will not go up in flames.

Cold start function
Reserves temporary battery power used to start up the UPS in battery mode when the utility power is out. Restores immediate emergency power to the load after installing new batteries.

Data line protection
Built-in data line protection prevents power surges that travel through telephone or Ethernet lines from causing damage to sensitive electronics.

Status LCD
Displays live status of the UPS with detailed information on battery and power conditions, alerting users to potential problems before they can affect equipment and cause costly downtime.

Communication ports
USB port enables the automatic shutdown function, safely powering down connected computers so as to prevent important data loss. Remotely manage and monitor UPS operations with the included user-friendly dashboard interface.

Forza tracker management software
Allows control and monitoring of multiple UPS units through a network connection. The software also prevents data loss from power outages by safely shutting down the UPS units while allowing the immediate detection and correction of any operation issues with minimal or no delay.

UL tested
Tested to UL1778 standards for electrical safety and compliance. Recognized by global laboratories.

Simple battery replacement
Avoid tedious battery access thanks to our convenient design. Makes the replacement of batteries fast and easy, reducing average times to service the units.

Transformer block spacing
Specifically designed for flexible deployment, aimed to accommodate various sized adapters and large wall plugged power transformers.

USB Charging ports
Equipped with reliable surge protection and latest USB charging capabilities for your tablet, smartphone and other portable electronic devices.

Coaxial protection
Helps protect sensitive and mission critical surveillance equipment from damage due to potential overvoltage and electrostatic discharges on coaxial transmission lines.

Ventilation system
Rear mounted extraction fan helps remove excess heat from the inside housing, guaranteeing to keep components within acceptable operating temperatures.

Energy Star
Certified energy-efficient product that offer savings on energy bills without sacrificing performance, features, and comfort.

Pure Sinewave
Power equal to that generated by the utility company, guaranteed to produce a cleaner output for sensitive equipment, improving overall performnace and efficiency.

Online double conversion topology
Online UPS with true double-conversion technology offer the highest level of protection suitable for mission critical equipment by isolating the connected loads from raw utility power. This system works by converting power from AC to DC and then back to AC thanks to its two stage inverter and rectifier design.

Battery backup
Supplies battery-derived backup power during blackouts, preventing loss of critical information and minimizing equipment stress caused by a hard shutdown. Delivers reserved energy long enough for equipment to properly shut down.

Automatic voltage regulation
Provides clean and stable AC power by automatically increasing low voltages during brownouts and decreasing overvoltages when irregularities are present on the main utility line.

Automatic shut-off
Guard your equipment against potentially damaging power fluctuations and other irregularities in the electrical supply by shutting down the power when voltage levels become too low or too high.

Surge protection, overload protection, electric discharge and voltage protection
Diverts excess voltage away from connected equipment during power surges or power spikes without reducing battery power used to run primary critical equipment. Extends battery life by preventing system overloads and controlling charging currents.

MOV Technology
Metal Oxide Varistor (MOV) technology helps absorb and it redirects transient energy preventing stray electricity from reaching protected equipment.

Thermofuse protection
Instantly disconnects the power when internal temperatures become dangerously high.

Power filters
Reduces electromagnetic interference (EMI) and radio frequency interference (RFI) to block unwanted noise, providing clean and distortion-free electricity to all power outlets.

Intelligent battery management
Reduces electromagnetic interference (EMI) and radio frequency interference (RFI) to block unwanted noise, providing clean and distortion-free electricity to all power outlets.

Battery self-test
Ensures early failure notifications of bad or old batteries for immediate replacement, preventing any unexpected and unforeseen backup power issues.

Active power factor correction
Counteracts harmonic distortion by modifying the power factor of the UPS in order to maximize the use of the electrical power from the main utility line.

Audible alarm
Provides audible notification of changing utility power and UPS power conditions for when the UPS is installed in hard to reach places or not easily seen by the user.

Cold start function
Reserves temporary battery power used to start up the UPS in battery mode when the utility power is out. Restores immediate emergency power to the load after installing new batteries.

LED visual indicators
Simplified monitoring. LEDs display the real-time status and working mode of power protection equipment.

Communication ports
USB port enables the automatic shutdown function, safely powering down connected computers so as to prevent important data loss. Remotely manage and monitor UPS operations with the included user-friendly dashboard interface.

Forza tracker management software
Allows control and monitoring of multiple UPS units through a network connection. The software also prevents data loss from power outages by safely shutting down the UPS units while allowing the immediate detection and correction of any operation issues with minimal or no delay.

UL certified
UL certified for electrical safety and compliance. Recognized by global laboratories.

Inverter and generator compatible
Engineered to properly work with frequency variations caused by emergency inverters and backup generators in areas with severe electrical fluctuations.

Ventilation system
Extraction fan helps remove excess heat from the inside housing, guaranteeing to keep components within acceptable operating temperatures.

Metal housing Metal housing
Heavy-duty, impact-resistant metal construction

ECO Mode
Environmentally friendly mode which reduces energy consumption and improves overall efficiency by minimizing the waste of energy.

High efficiency
Power factor ratio designed to maximize the use of in line electric power by improving power distribution to the connected loads

Emergency power-off EPO
Instantly shuts down the UPS and any connected equipment in the event of an emergency without the use of software.

Intelligent card slot Used to add an optional SNMP communication card for real-time monitoring and alerts of the UPS across a network.

Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices. Reserves electrical capacity and runtime for connected equipment requiring battery back-up and provides only overcurrent protection for less important equipment.

• On-line LED status display: battery active: battery replacement and overcharge indicators overcharge.
• Multifunctional lcd status and control console.
