UPS

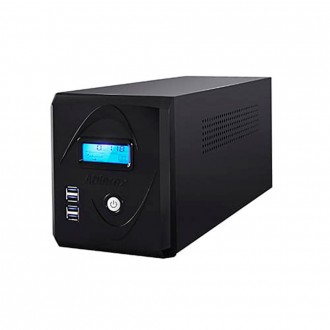

PRO Series high performance UPS with Automatic Voltage Regulator preserves battery life for high efficiency and longer runtime.

Highlights:

• Uninterruptable Power Supply

• LCD Display

• Corrects brownouts and over- voltages

• Battery supported outlets

• Automatic Voltage Regulation

• 4 USB charging ports 2.1A

• Compact Size, Lightweight

• Wide Input Voltage Window

• Generator and Inverter Compatible

Line Interactive UPS

ES Series 500 VA - 1200VA

• Output: 1000 VA / 600W
• Input: 88-139V @ 60 Hz ± 3 Hz
• 8 x Total NEMA 5-15R Outlets
• 4 x Battery Backup & Surge Outlets

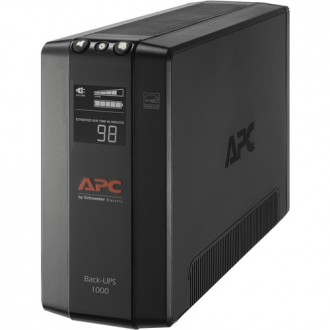

Designed for high-performance computers and electronics, the Back UPS Pro BX1000M-LM60 from APC delivers premium power protection and helps protect against surges, spikes, lightning, and outages. In the case of a power outage, it can provide up to 4.3 minutes of runtime at max load and 13.5 minutes at half load. It also provides an output capacity of 1000 VA / 600W, eight total NEMA5-15R outlets (four battery backup & surge and four surge-only), an input voltage of 88-139V at 60 Hz ± 3 Hz using its 6' cord with a NEMA 5-15P plug, a surge energy rating of 1103 joules, and 1Gb of dataline protection. Its sealed, lead-acid battery is maintenance-free and can be replaced using an APCRBC158 replacement battery. The BX1000M-LM60 runs at a frequency of 60 Hz.

For areas for inconsistent power grids, Automatic Voltage Regulation (AVR) helps provide stability against voltage fluctuations, overvoltages, and brownouts. This UPS has an integrated LCD display that shows information on the utility and system status, and PowerChute Personal Edition software can help track power quality, configure alarms, and shut down your computer during an outage. Also featured is a limited lifetime data-recovery warranty, a limited lifetime $250,000 equipment protection policy, and a limited 3-year warranty for the APC unit.

General Features
Building Wiring Fault Indicator
This LED informs users of potentially dangerous wiring problems in the wall circuit.

Hot-Swappable Batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced.

LCD Graphics Display
Text and mimic diagrams that display modes of operation, system parameters, and alarms.

User Replaceable Batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).

Manageability
USB Connection
Use your PC to access additional power protection and management features for your UPS via a USB port.

LCD Status Display
Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.

Audible Alarms
Provides notification of changing utility power and UPS power conditions.

Disconnected Battery Notification
Warns when a battery is not available to provide backup power.

Safety
Safety Agency Approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Availability
Transformer-Block Spaced Outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.

Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.

Green Mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Customizable Voltage-Transfer Points
Adjust the voltage points (widen or tighten the range) where your UPS transfers to battery to maximize useful battery life and protect sensitive electronics.

Customizable Voltage Sensitivity
Toggle between pre-determined voltage-transfer points depending on your power quality (high, medium or low sensitivity), maximizing useful battery life and protecting sensitive electronics.

Intelligent Battery Management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Cold-Start Capable
Provides temporary battery power when the utility power is out.

Battery Failure Notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance.

Automatic Self-Test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Serviceability
Resettable Circuit Breaker
Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)

Simple Battery Replacement
Increases UPS availability by allowing quick, easy battery replacement.

Protection
Dataline Surge Protection
Provides protection of connected equipment from power surges on the data lines.

Surge Only Outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.

Battery and Surge Protected Outlets
Back up and protect your hardware and data during power outages, surges, and spikes.

• High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions

• Includes: Basic UPS signalling RS-232 cable, CD with software, Rack mounting brackets, Rack mounting support rails, USB cable, User manual

Solution type

• Gaming
• Home
• Corporate

Applications

• Gaming consoles
• Computers & accessories
• Televisions 19-80"
• Audio systems
• Video surveillance
• Small servers

Interactive topology
Interactive UPS offer a cost effective solution with low energy consumption ratings, extending the overall life cycle of batteries. Voltage regulation is accomplished without switching to battery mode.

Battery backup
Supplies battery-derived backup power during blackouts, preventing loss of critical information and minimizing equipment stress caused by a hard shutdown. Delivers reserved energy long enough for equipment to properly shut down.

Automatic voltage regulation (AVR)
Provides clean and stable AC power by automatically increasing low voltages during brownouts and decreasing overvoltages without tapping into the reserved battery power when irregularities are present on the main utility line.

Automatic shut-off
Guard your equipment against potentially damaging power fluctuations and other irregularities in the electrical supply by shutting down the power when voltage levels become too low or too high.

Surge protection, overload protection, electric discharge and voltage protection
Diverts excess voltage away from connected equipment during power surges or power spikes without reducing battery power used to run primary critical equipment. Extends battery life by preventing system overloads and controlling charging currents.

Resettable circuit breaker
Automatically prevents the flow of electricity in an electric circuit as a safety measure upon detecting undesirable high voltage levels. Can be reset to resume operation.

MOV Technology
Metal Oxide Varistor (MOV) technology helps absorb and it redirects transient energy preventing stray electricity from reaching protected equipment.

Thermofuse protection
Instantly disconnects the power when internal temperatures become dangerously high.

Power filters
Reduces electromagnetic interference (EMI) and radio frequency interference (RFI) to block unwanted noise, providing clean and distortion-free electricity to all power outlets.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Battery self-test
Ensures early failure notifications of bad or old batteries for immediate replacement, preventing any unexpected and unforeseen backup power issues.

Audible alarm
Provides audible notification of changing utility power and UPS power conditions for when the UPS is installed in hard to reach places or not easily seen by the user.

Flame retardant material
All of our products are constructed with fire retardant ABS material, guaranteeing that if any failures are present, the equipment will not go up in flames.

Cold start function
Reserves temporary battery power used to start up the UPS in battery mode when the utility power is out. Restores immediate emergency power to the load after installing new batteries.

Data line protection
Built-in data line protection prevents power surges that travel through telephone or Ethernet lines from causing damage to sensitive electronics.

Status LCD
Displays live status of the UPS with detailed information on battery and power conditions, alerting users to potential problems before they can affect equipment and cause costly downtime.

Communication ports
USB port enables the automatic shutdown function, safely powering down connected computers so as to prevent important data loss. Remotely manage and monitor UPS operations with the included user-friendly dashboard interface.

Forza tracker management software
Allows control and monitoring of multiple UPS units through a network connection. The software also prevents data loss from power outages by safely shutting down the UPS units while allowing the immediate detection and correction of any operation issues with minimal or no delay.

UL tested
Tested to UL1778 standards for electrical safety and compliance. Recognized by global laboratories.

Simple battery replacement
Avoid tedious battery access thanks to our convenient design. Makes the replacement of batteries fast and easy, reducing average times to service the units.

Transformer block spacing
Specifically designed for flexible deployment, aimed to accommodate various sized adapters and large wall plugged power transformers.

USB Charging ports
Equipped with reliable surge protection and latest USB charging capabilities for your tablet, smartphone and other portable electronic devices.

Coaxial protection
Helps protect sensitive and mission critical surveillance equipment from damage due to potential overvoltage and electrostatic discharges on coaxial transmission lines.

Ventilation system
Rear mounted extraction fan helps remove excess heat from the inside housing, guaranteeing to keep components within acceptable operating temperatures.

Energy Star
Certified energy-efficient product that offer savings on energy bills without sacrificing performance, features, and comfort.

Pure Sinewave
Power equal to that generated by the utility company, guaranteed to produce a cleaner output for sensitive equipment, improving overall performnace and efficiency.

Solution type

• Gaming
• Home
• Corporate

Applications

• Gaming consoles
• Computers & accessories
• Televisions 19-80"
• Audio systems
• Video surveillance
• Small servers

Interactive topology
Interactive UPS offer a cost effective solution with low energy consumption ratings, extending the overall life cycle of batteries. Voltage regulation is accomplished without switching to battery mode.

Battery backup
Supplies battery-derived backup power during blackouts, preventing loss of critical information and minimizing equipment stress caused by a hard shutdown. Delivers reserved energy long enough for equipment to properly shut down.

Automatic voltage regulation (AVR)
Provides clean and stable AC power by automatically increasing low voltages during brownouts and decreasing overvoltages without tapping into the reserved battery power when irregularities are present on the main utility line.

Automatic shut-off
Guard your equipment against potentially damaging power fluctuations and other irregularities in the electrical supply by shutting down the power when voltage levels become too low or too high.

Surge protection, overload protection, electric discharge and voltage protection
Diverts excess voltage away from connected equipment during power surges or power spikes without reducing battery power used to run primary critical equipment. Extends battery life by preventing system overloads and controlling charging currents.

Resettable circuit breaker
Automatically prevents the flow of electricity in an electric circuit as a safety measure upon detecting undesirable high voltage levels. Can be reset to resume operation.

MOV Technology
Metal Oxide Varistor (MOV) technology helps absorb and it redirects transient energy preventing stray electricity from reaching protected equipment.

Thermofuse protection
Instantly disconnects the power when internal temperatures become dangerously high.

Power filters
Reduces electromagnetic interference (EMI) and radio frequency interference (RFI) to block unwanted noise, providing clean and distortion-free electricity to all power outlets.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

Battery self-test
Ensures early failure notifications of bad or old batteries for immediate replacement, preventing any unexpected and unforeseen backup power issues.

Audible alarm
Provides audible notification of changing utility power and UPS power conditions for when the UPS is installed in hard to reach places or not easily seen by the user.

Flame retardant material
All of our products are constructed with fire retardant ABS material, guaranteeing that if any failures are present, the equipment will not go up in flames.

Cold start function
Reserves temporary battery power used to start up the UPS in battery mode when the utility power is out. Restores immediate emergency power to the load after installing new batteries.

Data line protection
Built-in data line protection prevents power surges that travel through telephone or Ethernet lines from causing damage to sensitive electronics.

Status LCD
Displays live status of the UPS with detailed information on battery and power conditions, alerting users to potential problems before they can affect equipment and cause costly downtime.

Communication ports
USB port enables the automatic shutdown function, safely powering down connected computers so as to prevent important data loss. Remotely manage and monitor UPS operations with the included user-friendly dashboard interface.

Forza tracker management software
Allows control and monitoring of multiple UPS units through a network connection. The software also prevents data loss from power outages by safely shutting down the UPS units while allowing the immediate detection and correction of any operation issues with minimal or no delay.

UL tested
Tested to UL1778 standards for electrical safety and compliance. Recognized by global laboratories.

Simple battery replacement
Avoid tedious battery access thanks to our convenient design. Makes the replacement of batteries fast and easy, reducing average times to service the units.

Transformer block spacing
Specifically designed for flexible deployment, aimed to accommodate various sized adapters and large wall plugged power transformers.

USB Charging ports
Equipped with reliable surge protection and latest USB charging capabilities for your tablet, smartphone and other portable electronic devices.

Coaxial protection
Helps protect sensitive and mission critical surveillance equipment from damage due to potential overvoltage and electrostatic discharges on coaxial transmission lines.

Ventilation system
Rear mounted extraction fan helps remove excess heat from the inside housing, guaranteeing to keep components within acceptable operating temperatures.

Energy Star
Certified energy-efficient product that offer savings on energy bills without sacrificing performance, features, and comfort.

Pure Sinewave
Power equal to that generated by the utility company, guaranteed to produce a cleaner output for sensitive equipment, improving overall performnace and efficiency.

• Output: 1350 VA / 810W
• Input: 120 VAC @ 60 Hz ± 3 Hz
• 10 x Total NEMA5-15R Outlets
• 5 x Battery Backup & Surge Outlets
