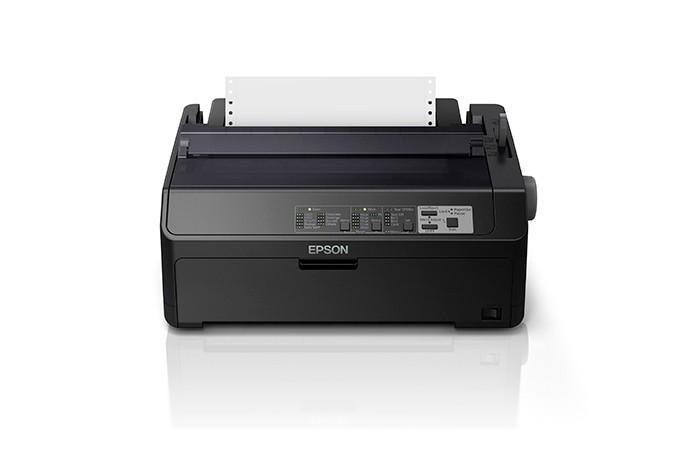

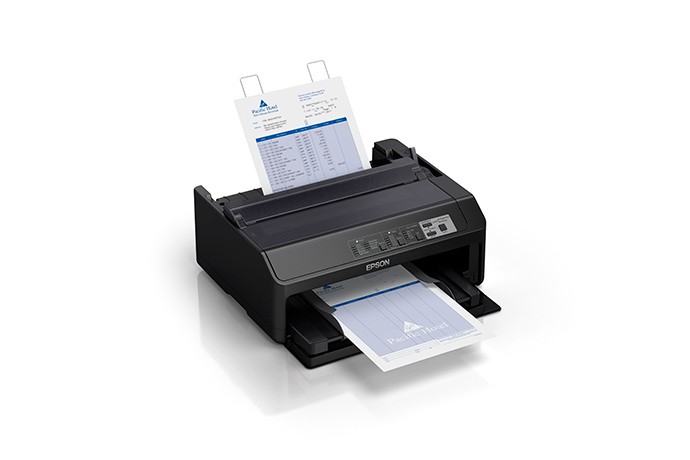

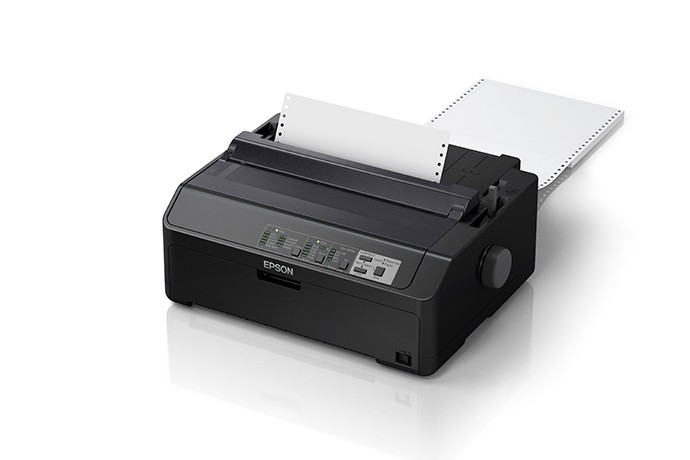

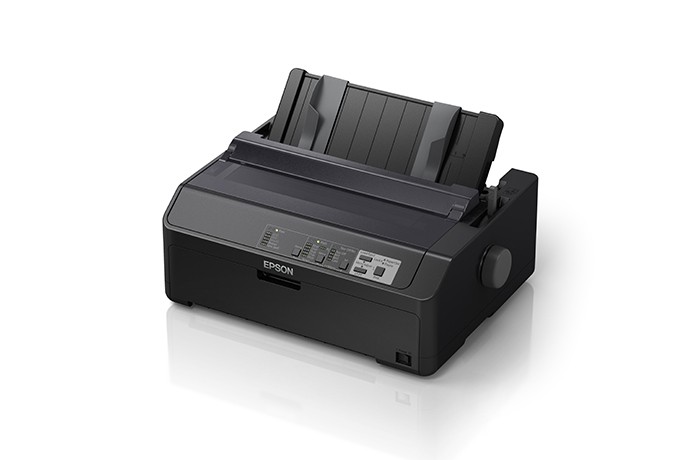

Epson LQ 590II Impact Printer
Sku
Epson LQ 590II Impact Printer

Beschikbaarheid: In voorraad

US$ 770,00
OF

Powerful impact printers built for busy print environments.



The Epson LQ-590II Impact Printer offers the durability and ease of use for critical daily print requirements. These reliable 24-pin impact printers boast a long life cycle and speeds up to 584 cps. Their up-to-5-million-character ribbon cartridge reduces user interventions as well as cost per page. Engineered for seamless integration into virtually any system, they include Epson ESC/P2® and IBM® PPDS printer languages. Ideal for harsh environments, these workhorses race through cut-sheet, continuous or multipart forms up to 7 pages thick, and feature an intuitive control panel for easy setup and operation.


Low cost of ownership
Up-to-5-million-character ribbon cartridge offers a low cost per page and reduces the frequency of user interventions


Powerful productivity
Ultra fast 24-pin printer speeds through multipart forms and reports at up to 584 cps


Seamless integration with new and legacy systems
Includes Epson ESC/P2 and IBM PPDS printer languages for greater flexibility


Advanced Paper Handling
Simple paper path for remarkable reliability; accommodates cut-sheet paper and continuous forms up to 7 pages thick


Convenient and Easy to Use
User-friendly control panel with intuitive setup and configuration features


Extreme reliability ― long life cycle; durable design with very few moving parts; withstands dust, humidity and extreme temperatures
Low power consumption ― ENERGY STAR® V2.0 compliant
Ethernet compatible ― network card supports IPv6 (LQ-590II NT model only)


Eco Features



  • RoHS compliant

  • Recyclable product

  • Epson America, Inc. is a SmartWaySM Transport Partner6


Secured and trusted checkout with

Omschrijving

Details

Print Other:


Printing Technology: 24-pin, serial impact dot matrix

Print Speed:
  • Ultra Speed Draft: 550 cps (10 cpi)
  • High Speed Draft: 487 cps (10 cpi)
  • High Speed Draft: 584 cps (12 cpi)
  • Draft: 366 cps (10 cpi)
  • Letter Quality (LQ): 121 cps (10 cpi)
Note: Normal print speed is achieved when printer safety cover is fully closed

Print Direction:
  • Bidirectional logic seeking for text and graphics printing
  • Unidirectional text or graphics printing can be selected using software commands

Characters & Lines:

Character Sets:
  • 13 character tables
  • 14 international countries character sets
Resident Bitmapped Fonts:
  • Ultra Speed High Draft: 10 cpi
  • High Speed Draft: 10, 12 cpi
  • Draft: 10, 12, 15, 17, 20 cpi
  • LQ: 10, 12, 15, 17, 20 cpi
Bar Code Fonts: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET, Codabar (NW-7), Industrial 2 of 5, Matrix 2 of 5
Formatting: 1/6" programmable in 1/360" increments

General:


Sound Level: Noise: 55 dBA (ISO 7779 pattern)

Safety Approvals:
  • Safety Standards: UL62368-1, CAN/CSA C22.2 No.60950-1, IEC/EN62368-1
  • EMI: FCC part15 subpart B class A, ICES-003 Class A
  • CE Markings: EN62368-1, EN55032 class A, EN61000-3-2, EN61000-3-3, E55024

Paper Handling Impact:


Forms:Continuous, multi-part (original + 5 carbonless copies), 1 + 6 copies with pull tractor (optional), labels, and roll paper
Maximum Thickness .0193" (0.49 mm)

Width:
  • Single Sheet: 3.9" to 10.1"
  • Continuous: 4.0" to 10.0"
  • Cut-sheet Feeder: 7.2" to 8.5"
Envelopes:
  • Envelope No.6
  • Envelope No.10
Length:
  • Single Sheet: 3.9" to 14.3"
  • Continuous: 4.0" to 22.0"
  • Cut-sheet Feeder: 8.3" to 14.3"
Paper Feed Mechanism:
  • Friction feed (Front, Rear)
  • Push tractor (Front, Rear)
  • Pull tractor (Front, Bottom, Rear)
  • Push and pull tractor (Front, Rear)
  • Cut-sheet feeder (Optional)
  • Roll paper holder (Optional)
Paper Feed Speed:
  • 30.3 millisecond per 1/6"
  • 5.5" per second continuous feed
Paper Path:
  • Manual Insertion: Front or rear in, top out
  • Cut-sheet Feeder: Rear in, top out
  • Tractor: Front, rear or bottom in, top out
  • Pull/Push Tractor: Front or rear in, top out



Impact Printer Details:


Software Drivers:OS Support: Windows Vista®, 7, XP, 8, 10, Windows Server® 2003, 2008, 2012 and 2016

Printer Language:
  • Epson: ESC/P2
  • IBM: PPDS
Input Buffer:Size 128KB

Interfaces:
  • Standard: Bidirectional Parallel (IEEE 1284 Nibble mode supported)
  • USB 2.0
  • Optional (Factory Config. Only): Serial Interface Board (LQ-590II NT only)
  • Network 10/100Base-TX Interface Board (LQ-590II NT only)
Control Panel:Font, Pitch, Pause, Tear-Off/Bin selection, Line Feed/Form Feed, Load/Eject, Micro-Adjust, Reset, Self Test, Data Dump, and Default Setting selection

Reliability:


MTBF:25,000 POH (25% duty cycle)
MVBF:50 million lines (Except Printhead)
Print head life:400 million characters
Ribbon life:5 million characters LQ 10 cpi, 48 dots/character

Power:


Rated Voltage:AC 100 V – 240 V
Rated Frequency:50 to 60 Hz
Power Consumption:
  • Operating Mode: Approx. 57 W (ISO/IEC 10561 Letter Pattern)
  • Ready Mode: Approx. 12 W
  • Sleep Mode: Approx. 0.4 W and 0.7 W (Network Model)
  • ENERGY STAR® Qualified: Certified with V2.0
Input voltage range:AC 90 to 264 V
Input frequency range:49.5 to 60.5 Hz
