Powerful impact printers built for busy print environments.

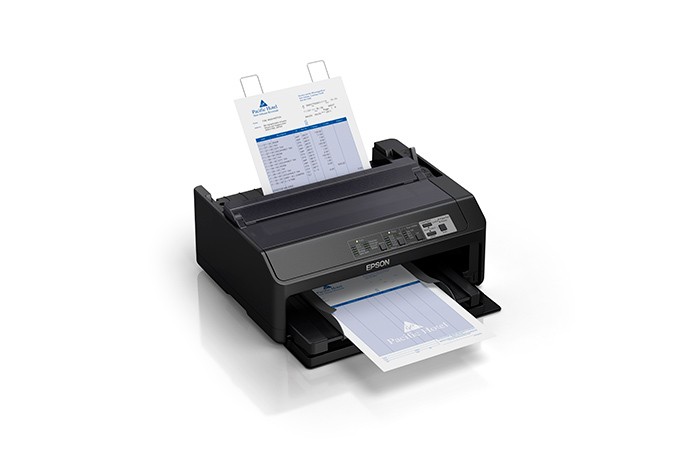

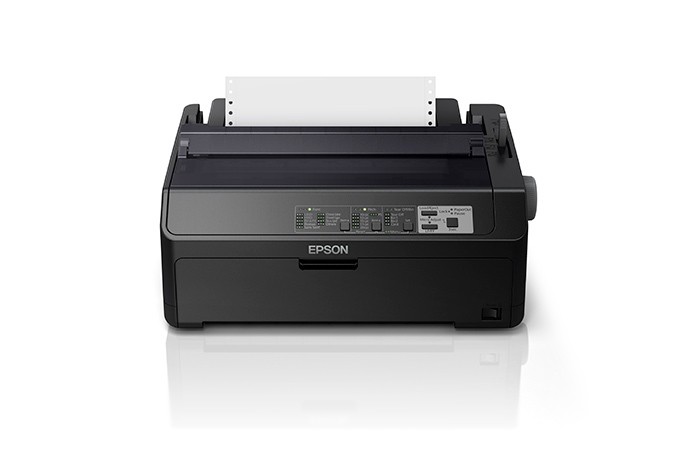

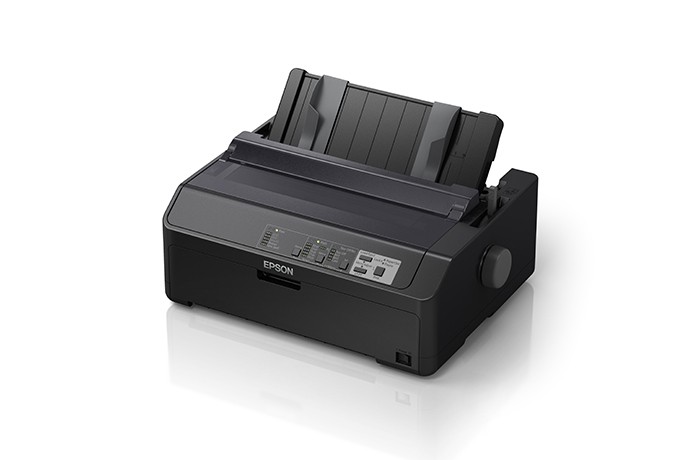

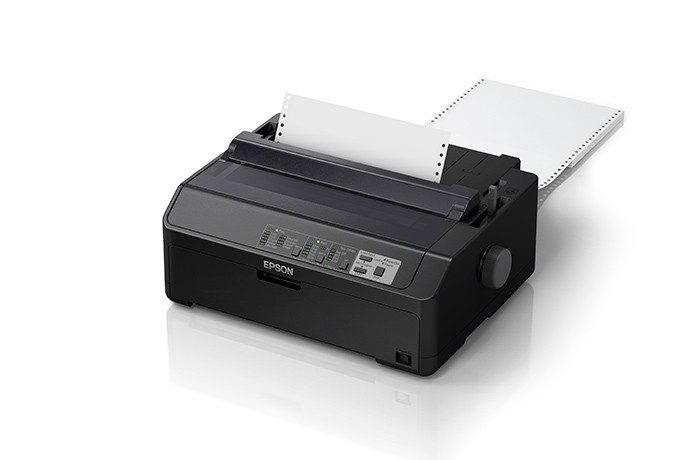

The Epson LQ-590II NT Network Impact Printer offers the durability and ease of use for critical daily print requirements. These reliable 24-pin impact printers boast a long life cycle and speeds up to 584 cps. Their up-to-5-million-character ribbon cartridge reduces user interventions as well as cost per page. Engineered for seamless integration into virtually any system, they include Epson ESC/P2® and IBM® PPDS printer languages. Ideal for harsh environments, these workhorses race through cut-sheet, continuous or multipart forms up to 7 pages thick, and feature an intuitive control panel for easy setup and operation.
Low cost of ownership
Up-to-5-million-character ribbon cartridge2 offers a low cost per page and reduces the frequency of user interventions
Powerful productivity
Ultra fast 24-pin printer speeds through multipart forms and reports at up to 584 cps
Seamless integration with new and legacy systems
Includes Epson ESC/P2 and IBM PPDS printer languages for greater flexibility
Advanced Paper Handling
Simple paper path for remarkable reliability; accommodates cut-sheet paper and continuous forms up to 7 pages thick
Convenient and Easy to Use
- User-friendly control panel with intuitive setup and configuration features
- Extreme reliability ― long life cycle; durable design with very few moving parts; withstands dust, humidity and extreme temperatures
- Low power consumption ― ENERGY STAR® V2.0 compliant
- Ethernet compatible ― network card supports IPv6 (LQ-590II N model only)
Secured and trusted checkout with
- Omschrijving
-
Details
Print Other:
Printing Technology:24-pin, serial impact dot matrixPrint Speed:- Ultra Speed Draft: 550 cps (10 cpi)
- High Speed Draft: 487 cps (10 cpi)
- High Speed Draft: 584 cps (12 cpi)
- Draft: 366 cps (10 cpi)
- Letter Quality (LQ): 121 cps (10 cpi)
Characters & Lines:
Character Sets:- 13 character tables
- 14 international countries character sets
- Ultra High Draft: 10 cpi
- High Speed Draft: 10, 12 cpi
- Draft: 10, 12, 15, 17, 20 cpi
- LQ: 10, 12, 15, 17, 20 cpi
General:
Sound Level:Noise: 55 dBA (ISO 7779 pattern)Safety Approvals:- Safety Standards: UL62368-1, CAN/CSA C22.2 No.60950-1, IEC/EN62368-1
- EMI: FCC part15 subpart B class A, ICES-003 Class A
- CE Markings: EN62368-1, EN55032 class A, EN61000-3-2, EN61000-3-3, E55024
Paper Handling Impact:
Forms:Continuous, multi-part (original + 5 carbonless copies), 1 + 6 copies with pull tractor (optional), labels, and roll paper
Maximum Thickness .0193" (0.49 mm)Width:- Single Sheet: 3.9" to 10.1"
- Continuous: 4.0" to 10.0"
- Cut-sheet Feeder: 7.2" to 8.5"
- Envelope No.6
- Envelope No.10
- Single Sheet: 3.9" to 14.3"
- Continuous: 4.0" to 22.0"
- Cut-sheet Feeder: 8.3" to 14.3"
- Friction feed (Front, Rear)
- Push tractor (Front, Rear)
- Pull tractor (Front, Bottom, Rear)
- Push and pull tractor (Front, Rear)
- Cut-sheet feeder (Optional)
- Roll paper holder (Optional)
- 30.3 millisecond per 1/6"
- 5.5" per second continuous feed
- Manual Insertion: Front or rear in, top out
- Cut-sheet Feeder: Rear in, top out
- Tractor: Front rear or bottom in, top out
- Pull/Push Tractor: Front or rear in, top out
Impact Printer Details:
Software Drivers:OS Support: Windows Vista®, 7, XP, 8, 10, Windows Server® 2003, 2008, 2012 and 2016Printer Language:- Epson: ESC/P2
- IBM: PPDS
- Bidirectional Parallel (IEEE 1284 Nibble mode supported)
- USB 2.0
- Serial Interface Board (LQ-590II N only)
- Network 10/100Base-TX Interface Board (LQ-590II N only)
Reliability:
MTBF:25,000 POH (25% duty cycle)MVBF:50 million lines (Except Printhead)Print head life:400 million charactersRibbon life:5 million characters LQ 10 cpi, 48 dots/characterPower:
Rated Voltage:AC 100 V – 240 VRated Frequency:50 to 60 HzPower Consumption:- Operating Mode: Approx. 57 W (ISO/IEC 10561 Letter Pattern)
- Ready Mode: Approx. 12 W
- Sleep Mode: Approx. 0.4 W and 0.7 W (Network Model)
- ENERGY STAR® Qualified: Certified with V2.0
