- Nexxt 4U wall-mount enclosure is designed to organize and protect compatible 19-inch network, voice, and data equipment.
- Features a 600 x 450mm cabinet size with durable SPCC steel construction and a tempered glass front door.
- Provides 4U of rack space with removable side panels, lockable access, and top and bottom cable management openings.
- Black RAL 9005 finish provides a professional appearance for offices, network rooms, and structured cabling installations.
Secured and trusted checkout with
- Omschrijving
-
Details

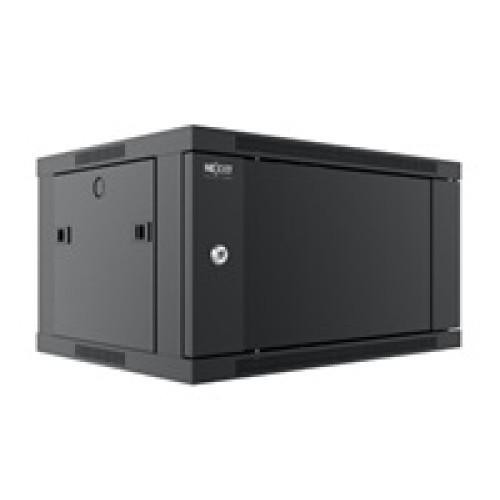

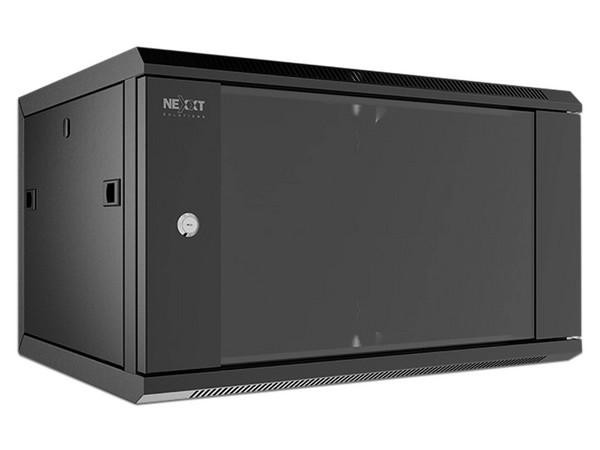

- 4U Wall-Mount Enclosure: The Nexxt NEC-F4U64B is a fixed wall-mount cabinet designed to securely organize compatible 19-inch networking, voice, data, and telecommunications equipment.
- 4U Rack Capacity: With 4U of rack space, this compact enclosure is suitable for patch panels, network switches, routers, cable management accessories, and other compatible rack-mounted equipment.
- 600 x 450mm Design: The enclosure measures approximately 600mm wide by 450mm deep, providing a space-efficient solution for network installations where floor space is limited.
- 19-Inch Rack Compatibility: The cabinet uses a standard 19-inch rack format with vertical mounting rails featuring standard square holes for compatible rack equipment.
- SPCC Steel Construction: Built with commercial-grade cold-rolled SPCC steel, the enclosure provides a durable structure for protecting and organizing installed network equipment.
- Tempered Glass Front Door: The front door features tempered glass, allowing convenient visibility of installed equipment while providing controlled access to the cabinet.
- Lockable Access: The front door can be locked to help restrict access to installed equipment and cabling, making the enclosure suitable for professional IT and networking environments.
- Removable Side Panels: Removable side panels provide convenient access to the interior for equipment installation, maintenance, upgrades, and cable management.
- Ventilation Support: The enclosure provides space for two optional ventilation units and includes passive ventilation access at the top and bottom to support airflow around installed equipment.
- Adjustable Rack Rails: The EIA-compliant mounting system allows compatible equipment to be positioned according to installation requirements and equipment depth.
- 270-Degree Door Opening: The front glass door can open up to 270 degrees, providing easier access to equipment during installation and maintenance.
- Cable Management: Top and bottom cable access points help route network and power cables into the cabinet while keeping the installation organized.
- Professional Black Finish: The RAL 9005 black finish provides a clean, professional appearance suitable for offices, network closets, server rooms, telecommunications areas, and commercial installations.
- 60kg Static Load Capacity: The cabinet supports a maximum static load of up to 60kg (132 lbs), making it suitable for compatible networking and telecommunications equipment.
- Easy Wall Installation: The fixed wall-mount design helps save valuable floor space while providing a centralized location for network equipment and cabling.
- Wide Range of Applications: Ideal for structured cabling, network switches, patch panels, routers, telecommunications equipment, security systems, and other compatible 19-inch rack devices.
- Protection Rating: The enclosure is rated IP20 and is intended for appropriate indoor equipment installations.
