- 13 dBi 2 x 2 Dual-Polarized MIMO Antenna
- Up to 300 Mbps Wi-Fi Data Speeds
- Transmission Power from 0 - 27 dBm/500mw
- 5.15 to 5.85 GHz Frequency

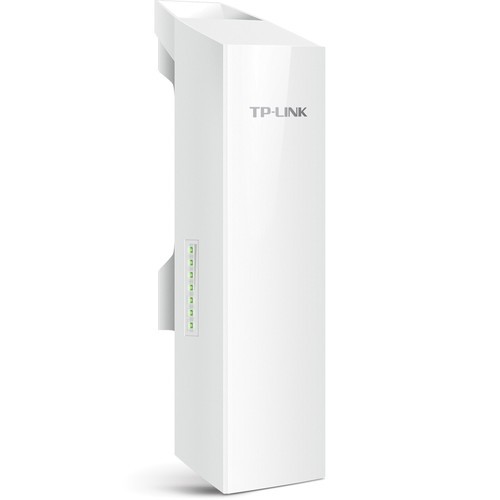

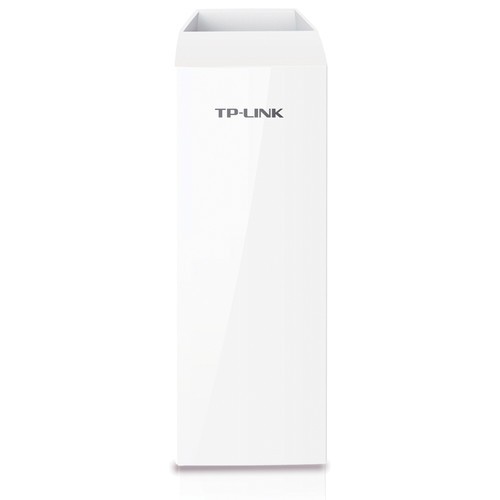

The CPE510 5 GHz Wireless-N300 Outdoor Access Point from TP-Link is dedicated to cost-effective solutions for outdoor wireless networking applications. With its centralized management application it is suitable for point-to-point, point-to-multipoint, and outdoor Wi-Fi coverage applications. Professional performance coupled with user-friendly design makes this wireless access point a suitable choice for both business and home users.
Applications
Long-distance Wireless Connection
Using two CPE510 to establish a long distance wireless connection, suitable for wireless supervision and wireless internet sharing applications.
WISP CPE
CPE510 as powerful clients in point to multi-point links.
Outdoor Access Point
CPE510 has a powerful 5 GHz access points.
Software
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPE's and base stations will be so enormous that the real throughput of the network will drop resulting in an impact on end-users experience to mitigate these effects. TP-LINK's Pharos series uses MAXtream TDMA technology.
Pharos Control - Centralized Management System
Pharos series also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly Web-based management system allows professionals to do more specific configurations
Hardware
Professional Outdoor Design

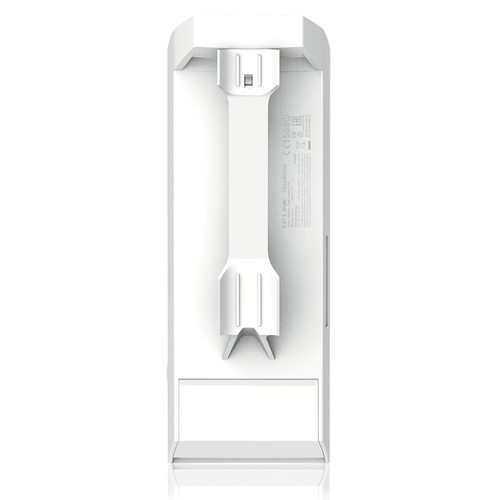

Weather-proof enclosure with pole mounting design
Secondary Ethernet port with software enabled PoE output allows for seamless IP camera connectivity
Shielded Ethernet ports and grounding terminal provide double protections against ESD attacks
Easy Deployment and Maintenance
Passive PoE adapter makes installation easier and its Remote Reset button allows for the device to be reset remotely from the power supply location.
Secured and trusted checkout with
- Omschrijving
-
Details
HardwareProcessor Qualcomm Atheros Enterprise 560 MHz CPU, MIPS 74Kc Memory 64 MB DDR2 RAM, 8 MB flash Interface 1 x 10/100 Mbps shielded Ethernet port (LAN0, passive PoE in)
1x 10/100 Mbps shielded Ethernet port (LAN1, passive PoE pass-through)
1 x Grounding terminal
1 x Reset buttonAntenna Type Built-in 13 dBi 2 x 2 Dual-polarized directional antenna
Beam width: 45° (H-plane) / 30° (E-plane)Protection 15 KV ESD protection
6000 V Lightning protectionPower Consumption: maximum 13 W*
Passive Power over Ethernet via LAN0 (+4/5-pins, -7/8-pins)
Voltage range: 16 to 27 VDCEnclosure Outdoor ASA stabilized plastic material
IPX5 waterproof certificationWirelessWireless Standard IEEE 802.11a/n (with Pharos MAXtream disabled) Proprietary Protocol TDMA mode (with Pharos MAXtream enabled) Wireless Speed Up to 300 Mb/s (40 MHz, dynamic)
Up to 144.4 Mb/s (20 MHz, dynamic)
Up to 72.2 Mb/s (10 MHz, dynamic)
Up to 36.1 Mb/s (5 MHz, dynamic)Wireless Speeds Up to 300 Mb/s (40 MHz, dynamic)
Up to 144.4 Mb/s (20 MHz, dynamic)
Up to 72.2 Mb/s (10 MHz, dynamic)
Up to 36.1 Mb/s (5 MHz, dynamic)Frequency 5.15 to 5.85 GHz* Reception Sensitivity 802.11a:
54M: -75 dBm
48M: -76 dBm
36M: -83 dBm
6-24M: -95 dBm
802.11n:
MCS15: -73 dBm
MCS14: -74 dBm
MCS13: -76 dBm
MCS12: -80 dBm
MCS11: -83 dBm
MCS10: -88 dBm
MCS9: -90 dBm
MCS8: -93 dBm
MCS7: -73 dBm
MCS6: -74 dBm
MCS5: -76 dBm
MCS4: -80 dBm
MCS3: -83 dBm
MCS2: -88 dBm
MCS1: -90 dBm
MCS0: -93 dBmTransmission Power 27 dBm/500 mw* (Adjustable power by 1 dBm) SoftwareWireless Configurations Pharos MAXtream TDMA technology
802.11 b/g/n modes
Selectable channel width: 5/10/20/40 MHz
Automatic channel selection
Transmission power control
Dynamic Frequency Selection (DFS)
WDS Enable/DisableSecurity WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID broadcast enable/disable
Multi-SSID with VLAN tagging (AP mode only)
Distance/ACK timeout setting
Wireless MAC address filterWireless Advanced Beacon interval/RTS threshold/fragmentation
Threshold/DTIM interval/AP isolation/Short GI/Wi-Fi multimediaManagement Discovery and remote management via Pharos control application
HTTP/HTTPS Web-based management
System log
SNMP agent (v2c)
Ping watch dog
Dynamic DDNS
SSH serverSystem Tools Wireless signal quality indicators:
Signal strength/noise/transmit CCQ/CPU/memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum analyzer
Speed test
Ping
TracerouteSystem-Level Optimizations Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dogPoE FeatureButton Reset button Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark Power Efficiency: >80%
Input: 100-240 VAC, 50/60 Hz
Input Current: 0.8 A maximum at 100 VAC
Input Voltage: 100 to 240 VAC at 50 Hz to 60 Hz
Output: 24 VDC, 1.0 A maximum
+4/5-pins, -7/8-pins (Support up to 60 m Power over Ethernet)
Output Voltage: 24 VDC (+4/5-pins, -7/8-pins)Interfaces 1 x AC Jack with Earth Ground
1 x 10/100 Mb/s Shielded Ethernet Port (Power + Data)
1 x 10/100 Mb/s Shielded Ethernet Port (Data)Power Status LEDs 0 to 0.8 A: Green
0.8 A to 1.0 A: RedGeneralSystem Requirements Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux* Temperature Operating: -22 to 158°F (-30 to 70°C)
Storage: -40 to 158°F (-40 to 70°C)Humidity Operating: 10 to 90% (non-condensing)
Storage: 5 to 95% (non-condensing)Certification CE, FCC, RoHS, IPX5 Dimensions (W x H x D) 8.8 x 2.4 x 3.1" (224.0 x 60.0 x 79.0 mm) Weight 11.2 oz (317.5 g) Packaging InfoPackage Weight 1.65 lb Box Dimensions (LxWxH) 10.5 x 5.3 x 4.2" - Reviews
-
