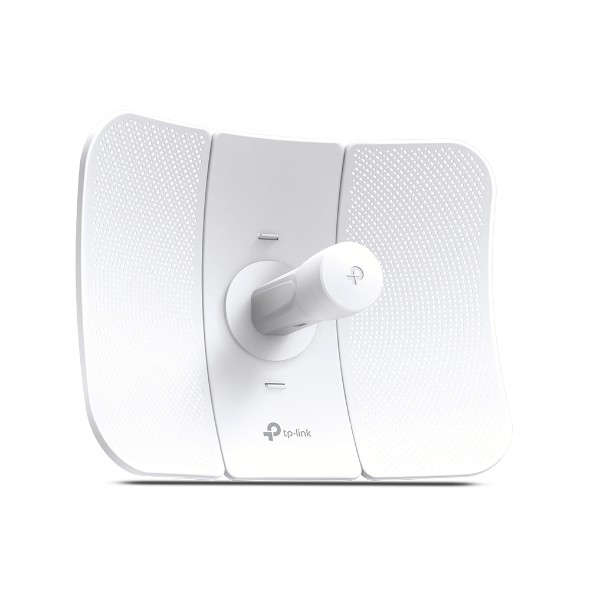

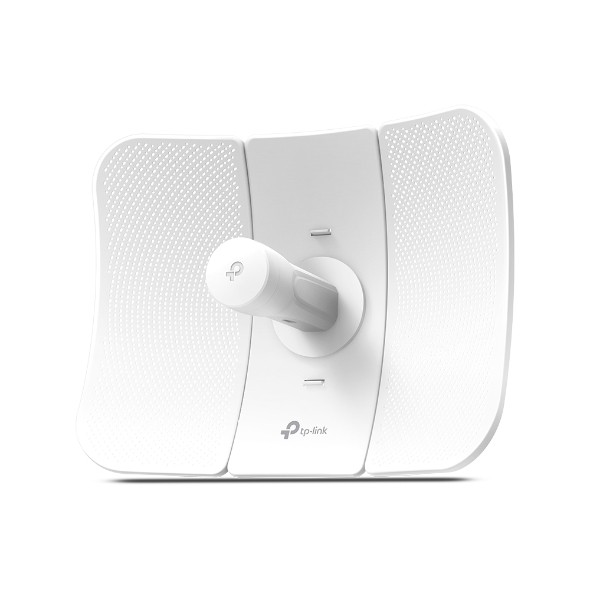

• 802.11ac for up to 867Mbps on 5GHz wireless data rate
• 23dBi high-gain directional 2×2 MIMO, ideal for long-distance application
• Excellent beam directivity, improved latency and noise cancellation
• Innovative snap-lock parts make for fast assembly and a sturdy structural design keeps CPE710 stable even in strong winds
• Durable IP65 weatherproof enclosure along with 15kV ESD and 6kV lightning protection ensures all-weather suitability
• Pharos Control gives administrators a free, centralized management system
• Passive PoE supports to allow flexible deployment and convenient installation
Snap-lock parts make assembly simple and convenient
Pole mount kits and the freedom of three-axis alignment facilitate flexible installation
Sturdy design ensures stability in windy conditions
Pharos Control – Centralized Management System
CPE710 comes equipped with Pharos Control centralized management software, helping users easily manage all devices in their network from a single PC. Functions include device discovery, status monitoring, firmware upgrading, and network maintenance. An intuitive web-based interface– PharOS - provides an alternative management method and allows professionals to access more detailed configurations.
Secured and trusted checkout with
- Omschrijving
-
Details
HARDWARE FEATURES Processor Qualcomm 750MHz CPU, MIPS 74Kc Memory 128 MB DDR2 RAM, 16 MB Flash Interface 1 10/100/1000 Mbps Shielded Ethernet Port (LAN/POE)
1 Reset ButtonPower Supply Passive Power over Ethernet via LAN (+4,5pins; -7,8pins)
Voltage range: 16-27V DCDimensions ( W x D x H ) 14.4 x 11.0 x 8.1 in.
(366 x 280 x 207 mm)Antenna Gain 23 dBi Antenna Beamwidth 9° (Azimuth)/7° (Elevation) Protection 15 KV ESD Protection
6 KV Lightning ProtectionEnclosure Material: Outdoor PC stabilized plastic
Weatherproof: IP65 water and dust proof designWIRELESS FEATURES Wireless Standards IEEE 802.11a/n/ac Wireless Speeds Up to 867 Mbps (80 MHz, Dynamic)
Up to 400 Mbps (40 MHz, Dynamic)
Up to 173.4 Mbps (20 MHz, Dynamic)Frequency 5.15–5.85 GHz
Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used.Transmit Power Max. 27 dBm (Adjustable power by 1dBm) SOFTWARE FEATURES Network Configuration WAN: Static/ Dynamic/ PPPoE
LAN: Static/ Dynamic/ DHCP
Forwarding: ALG/ UPnP/ Virtual Server/ Port Trigger
Security: SPI Firewall/ Ping Forbidden/ DoS Protection
Access Control
Static Routing
Bandwidth Control
IP & MAC BindingWireless Configurations Selectable channel width: 20, 40 or 80MHz
Automatic Wi-Fi channel selection
RF transmit power adjustment in 1 dB step
Dynamic Frequency Selection (DFS)
WDS Enable/ Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) encryption,
SSID broadcast enable/ disable
Multi-SSID with VLAN tagging in AP mode
Distance/ ACK timeout setting
Wireless MAC address filter
Wireless advanced features:
Beacon interval, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, short GI, Wi-Fi multimedia
Long range point-to-pointManagement Discovery and Remote Management with Pharos Control (Windows)
HTTP/ HTTPS Web-based management
System log
SNMP agent (v2c)
Ping watchdog
Dynamic DNS
SSH serverSystem Tools Indicators:Signal Strength, Noise, Transmit CCQ, CPU, and Memory usage
Monitors: Throughput, Stations, Interfaces, ARP, Routes, WAN, and DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Antenna AlignmentSystem-level Optimizations Optimized IGMP Snooping / Proxy for multicast applications POE ADAPTER FEATURES Dimensions(W x D x H) 3.3 x 1.7 x 1.2 in.
(85 × 44 × 30 mm)Interfaces 1 AC Jack with Earth Ground
1× 10/100/1000 Mbps Shielded Ethernet Port (Power + Data)
1× 10/100/1000 Mbps Shielded Ethernet Port (Data)Button Remote Reset Button Power Status LEDs Green Input 100-240VAC, 50/60Hz Output 24VDC, 0.5A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)Efficiency > 84.29% Certifications CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark OTHERS Certification CE, FCC, RoHS, IP65 Package Contents Outdoor Wireless CPE
24V 0.5A Passive PoE Adapter
Pole Mounting Kits
AC Power Cord
Installation GuideEnvironment Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing - Reviews
-
